ADB forward Android与PC进行Socket通信

ADB（Android Debug Bridge）是一种强大的工具，用于连接Android设备并执行多种操作，如调试应用程序或进行文件传输。本文将介绍如何通过ADB实现Android与PC之间的Socket通信。

ADB的“forward”命令允许数据通过特定的端口转发。例如，使用命令“adb forward tcp:8000 tcp:9000”可将本机8000端口的数据转发至手机9000端口。理解TCP协议的基础知识有助于更好地掌握这一过程。

Android客户端代码

在Android Studio中创建新项目，并添加必要的权限：

创建服务端线程：

import android.util.Log;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.net.ServerSocket;
import java.net.Socket;
public class ServerThread extends Thread {
    private ServerSocket serverSocket;
    private Socket socket;
    public Socket getSocket() {
        return socket;
    }
    @Override
    public void run() {
        try {
            serverSocket = new ServerSocket(9000);
            Log.e("tip", "*等待建立连接*");
            socket = serverSocket.accept();
            Log.e("tip", "*已经建立连接*");
            startReader(socket);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    private void startReader(final Socket socket) {
        while (true) {
            String receiveMsg = "";
            try {
                BufferedReader bufferedReader = new BufferedReader(new InputStreamReader(socket.getInputStream(), "UTF-8"));
                if ((receiveMsg = bufferedReader.readLine()) != null) {
                    System.out.println("获取到客户端的信息：" + receiveMsg);
                    Log.e("msg from client", receiveMsg);
                    OutputStream out = socket.getOutputStream();
                    receiveMsg += " from server\n";
                    out.write(receiveMsg.getBytes());
                    out.flush();
                    Log.e("write back", receiveMsg);
                } else {
                    Log.e("tip", "no new msg");
                }
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }
}

在MainActivity中启动线程：

public class MainActivity extends AppCompatActivity {
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        new Thread(new ServerThread()).start();
    }
}

JAVA客户端代码

创建客户端类：

package com.example.test;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.net.Socket;
import java.net.UnknownHostException;
public class ClientApp {
    static Socket socket = null;
    private static boolean mRunning = false;
    public static void main(String[] args) {
        startClient();
    }
    private static void startClient() {
        try {
            socket = new Socket("127.0.0.1", 8000);
            mRunning = true;
            new Thread(new InThread(socket)).start();
            new Thread(new OutThread(socket)).start();
        } catch (UnknownHostException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    static class InThread implements Runnable {
        Socket socket = null;
        public InThread(Socket s) {
            socket = s;
        }
        @Override
        public void run() {
            while (mRunning) {
                if (socket.isClosed()) {
                    mRunning = false;
                    break;
                }
                InputStream in = null;
                try {
                    in = socket.getInputStream();
                } catch (IOException e1) {
                    e1.printStackTrace();
                }
                InputStreamReader reader = new InputStreamReader(in);
                try {
                    char[] buf = new char[1024];
                    int cnt = reader.read(buf);
                    if (cnt > 0) {
                        String msg = new String(buf, 0, cnt);
                        System.out.println(msg);
                    }
                } catch (IOException e) {
                    String error = e.getMessage();
                    if (!error.equalsIgnoreCase("Socket closed")) {
                        e.printStackTrace();
                    }
                }
            }
        }
    }
    static class OutThread implements Runnable {
        Socket socket = null;
        public OutThread(Socket s) {
            socket = s;
        }
        @Override
        public void run() {
            while (mRunning) {
                if (socket.isClosed()) {
                    mRunning = false;
                    break;
                }
                OutputStream out = null;
                try {
                    out = socket.getOutputStream();
                } catch (IOException e2) {
                    e2.printStackTrace();
                }
                try {
                    System.out.println("prepare to send data to server");
                    out.write("hello server\n".getBytes());
                    out.flush();
                } catch (IOException e) {
                    e.printStackTrace();
                }
                try {
                    Thread.sleep(2000);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
        }
    }
}

执行步骤

adb forward tcp:8000 tcp:9000

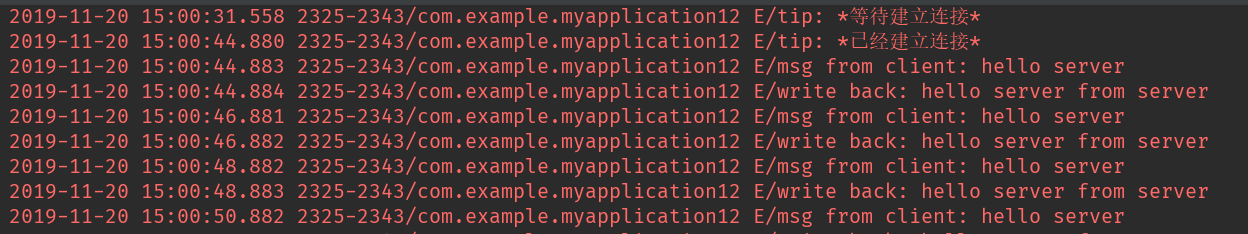

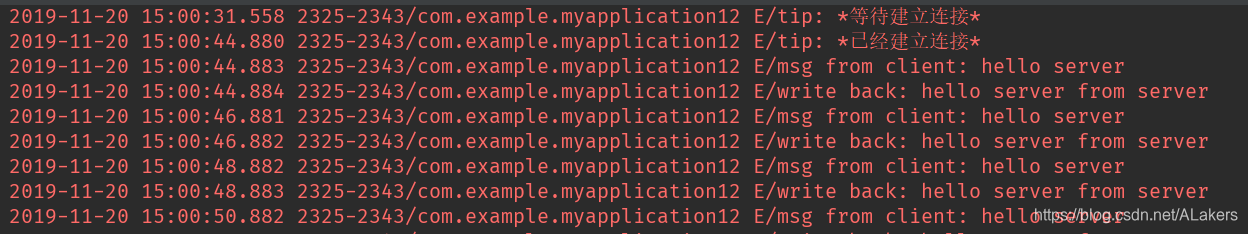

结果

通过以上步骤，您应能看到Android客户端接收到来自JAVA客户端的消息，并发送反馈信息。日志输出将帮助您跟踪和调试过程中出现的问题。

扩展

• ADB连接方式：可以选择通过USB或网络连接，网络连接可通过“adb connect ip:port”实现。
• 数据转发：使用“adb forward”命令可实现不同端口之间的数据转发。
• 模拟器支持：确保模拟器已连接并设置正确的网络环境。

通过以上方法，您可以实现Android与PC之间的Socket通信，适用于各种数据传输需求。
